AFL3-W19A-AL

Call

Availability: Pre Order 0 Hari
Categories: Komputer Industri
Type: Light Industrial Panel PC
Section:Industrial Panel PC
Seller:    Rayastock

OverView

● 18.5” light industrial interactive panel PC
● Intel Apollo lake processor
● Wide range DC input with lockable DC jack
● Selectable AT/ATX power mode
● Built-in speakers
● One mSATA slot
● One HDMI output
● IP64 compliant front panel
● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Spec ItemDescription
Communication
Bluetooth Bluetooth V4.0
Wireless IEEE 802.11a/b/g/n/ac
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -15ºC ~ 50ºC
Storage Temperature -20°C~60°C
I/O Interface
Audio AMP 3W + 3W (internal speaker)
Audio Codec ALC269
Ethernet 2x PCIe GbE by Intel® i211 controller
RAM One 204-pin 1600/1333 MHz single-channel DDR3L
SO-DIMM, 4GB pre-installed (system max. 8GB)
LCD
Backlight MTBF 30000 (LED backlight)
Brightness (cd/m2) 250
Contrast Ratio 1000:1
LCD Color 262K
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Resolution 1366 x 768 (16:9)
Size 18.5”
Viewing Angle (H-V) 170º / 160º
Other Features
Camera 2-megapixel with low light function
Microphone digital microphone
Power
Power consumption 12V@3.2A
System
CPU Intel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)
Storage (1) 1 x 2.5” SATA 3Gb/s HDD bay
(2) 1 x mSATA slot
Touch
Touch Controller EETI EXC3180
Touch Screen Projected capacitive type with USB interface (anti-UV)
Weight
Weight 6.3/9
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x HDMI
2 x LAN(GbE)
1 x Line out
1 x Power In
1 x Power Switch
1 x Reset Button
1 x RS-232(RJ45 (RI/5V/12V))
1 x RS-422/485(RJ45 (RI/5V/12V))
2 x USB 2.0
2 x USB 3.0



AFL3-W19A-AL_BN

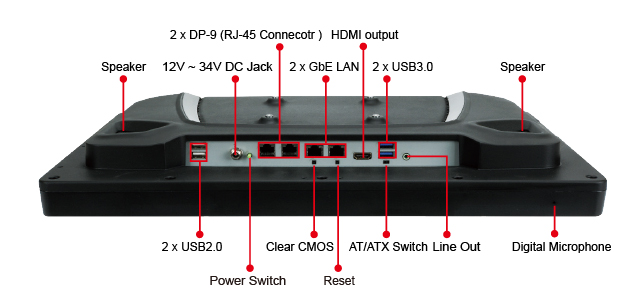

I/O Interface



AFL3-W19A-AL_IO-interface

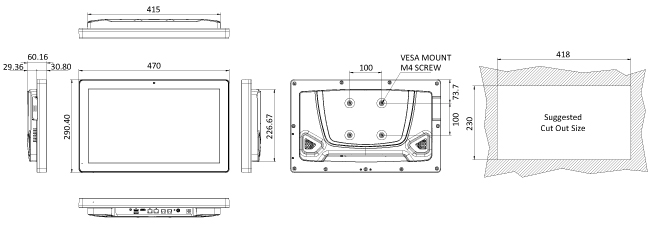

Dimension



AFL3-W19A-AL_IO-Dimension
