HSC-13M3-O

Call

Availability: Pre Order 0 Hari
Categories: Komputer Industri
Type: Area Scan Camera
Section:Video Capture & Machine Vision
Seller:    Rayastock

OverView

● Compact 1/2” On-Semi CMOS sensor with global shutter
● Large pixel: 4.8 µm / Frame rate: 140fps / Resolution: 1280x1024
● High bandwidth, provides power and data over a single cable.
● Lower cost implementation, Plug-and-play and easier to set up.
● Adopted as “USB3 Vision” standard and supported vision software such as Halcon, Merlic, MIL, NI LabVIEW.

Spec ItemDescription
Appearance
Dimension 29 mm x 29 mm x 57 mm
Net Weight 85g
Capture Interface
Interface Type 1 x USB3.0
Certifications
Safety & EMC CE/EMC, FCC
LED Safety CE/LVD
Environment
Operating Temperature 0° ~ 50°C
Storage Humidity 30% ~ 95%
Storage Temperature -30° ~ 60°C
Operating Humidity 20% ~ 80%
I/O Interface
I/O Interface 1 x Trigger connection(IO connecting cable with an 8-pin male connector)
Others
Power Requirements 5V via USB 3.0 or 6-18V via Opto-isolated input
Parameters
Opto-isolated I/O Ports 1 input, 1 output
ADC 8-bit/10-bit
Pixel Size 4.8µm
Readout Method Global shutter
Resolution 1280 x 1024
Sensor Name On-Semi PYTHON 1300
Sensor Type CMOS
Machine Vision Standard USB3 Vision v1.0
Non-isolated I/O Ports 1 RS-232
Sensor Size (inch) 1/2"
Auxiliary Output 5V, 100 mA max
Chroma Mono
Compliance CE, FCC
Frame Rate 150FPS (Max)
Interface USB 3.0
Lens Mount CS-mount
Megapixels 1.3 MP
Software Support
SDK 1 x Windows
OS Support 1 x Microsoft Windows 10 32-bit
1 x Microsoft Windows 10 64-bit
1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 7 64-bit
1 x Microsoft Windows 8.1 32-bit
1 x Microsoft Windows 8.1 64-bit
Sensor Specifications
Acquisition Continuous, Single Frame, Multi Frame



HSC-13M3-O and HSC-13M4-E High Speed USB3 Industrial Cameras

High compliance to 3rd party vision library

The architecture of the IEI Camera is based on USB3 Vision and GenICam standard, which offers you compatible interface with name-brand machine vision software such as MVtec Halcon, MERLIC, NI-LabVIEW, MIL …etc.

High compliance to 3rd party vision library

Application

industrial-camera-application

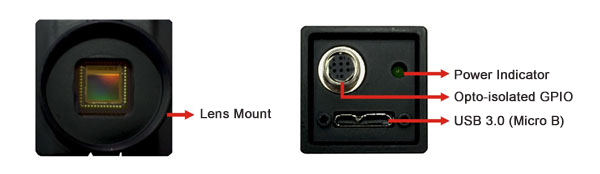

External Overview

External Overview
